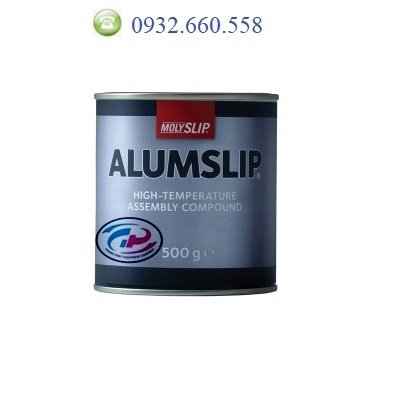

Aluminium-based anti-seize

PRODUCT INFORMATION

Molyslip ALUMSLIP is a high-temperature, anti-seize compound formulated to protect fasteners from seizure-induced by extremes of temperature, pressure, and corrosion. The mineral oil base-fluid contains micronized particles of metal and non-metal fillers to provide excellent lubrication and protection to threads and components.

Molyslip ALUMSLIP is resistant to temperatures up to 650°C and it effectively protects against chemical corrosion and atmospheric oxidation. Free of copper, lead, sulphides, fluorides, and chlorides, ALUMSLIP is suitable for use on all studs, nuts, bolts and other threaded connections, including turbine casing studs, burner nozzles, boiler inspection points and furnace bolts. ALUMSLIP is specifically designed for where copper needs to be avoided (for example where concerns of galvanic corrosion exist).

FEATURES AND BENEFITS

High-temperature capability – up to 650°C

Ensures consistent friction between threads

Protects against galling and seizure

Protects against rust and corrosion

Eases assembly of tight tolerance components

PACKAGING

500g tin, 20 KG pail

TECHNICAL DATA (TYPICAL VALUES)

PropertyResult

AppearanceSmooth silver paste

ConsistencyNLGI 1

Effective temperature range-100°C up to +650°C

Solidification point (of the base fluid)-20°C

Base oil viscosity100 cSt

When a compound is applied to a threaded fastener that will be tightened to a specific torque setting, the torque setting will require adjustment to allow for the lubricating effect of the compound. Failure to do so can result in incorrect tension in the fastener. Correct torque settings can be calculated using the tables and charts below and the standard thread equation:

T = KDP
T = Torque (N.m), D = Diameter (m), P = Clamping force (N), K = Nut factor
